Description
Please ensure our product is your need. We are not responsible if the buyer order wrong product.
NOTE:
This engine does not have oil, please be sure to add the oil before using.
Description:
Part Number: 01010039
Type: Single cylinder, horizontal, 4-stroke, oil-cooled

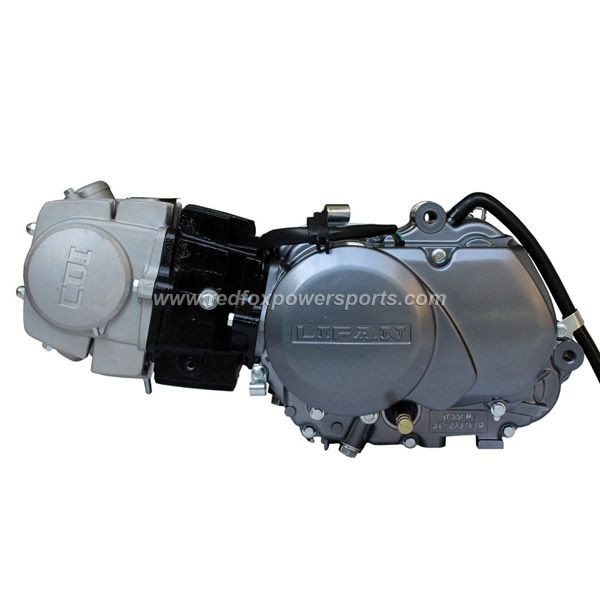

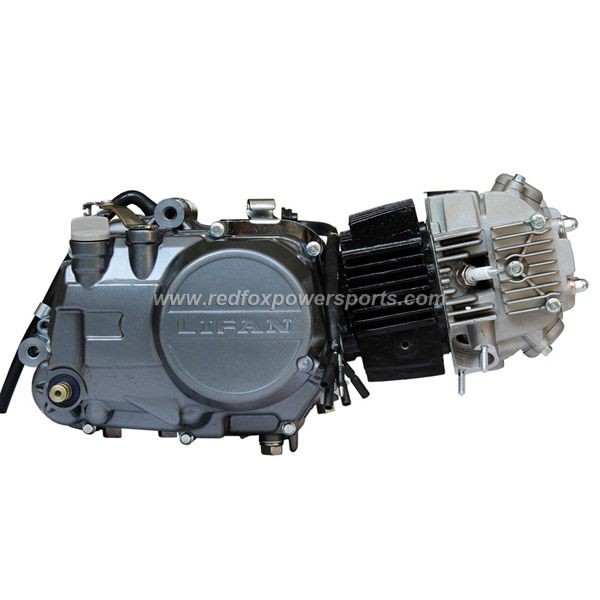

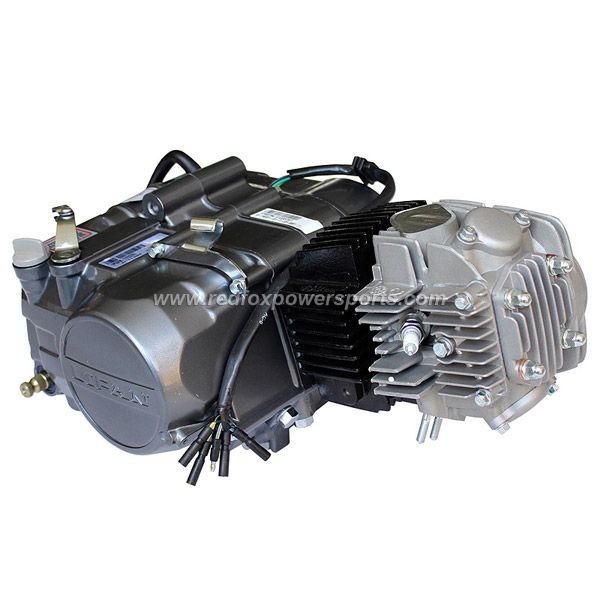

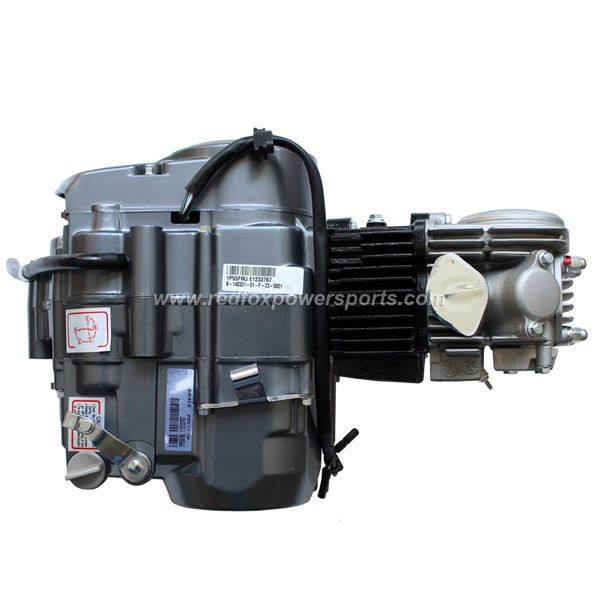

Engine Model Lifan: 1P55FMJ-140cc
Displacement: 140cc
Bore x Stroke: 55mm x 59mm
Dimension: 470 x 75 x 80mm
Start Mode: kick start
Compression: 9.0:1
Ignition: CDI,12V, A7TC
Maximum Power: 8Kw/7500r/min ± 375r/min
Rated Power: 7Kw/7,500r/min ± 375r/min
Torque: at least 9.5 N.m 7,500r/min ± 250r/min
Idling Speed: 1500r/min
Min. Fuel Consumption: ≤367g/kw.h
Oil capacity: 900ml (It comes without oil, add it before use)
Gears: 4-speed, manual clutch, 1N234 (1↓3↑)
Gear Ratios: 1st 3.182:1, 2nd 1.706:1, 3rd 1.238:1, 4th 0.958:1
Sprocket: 15T 428 Chain

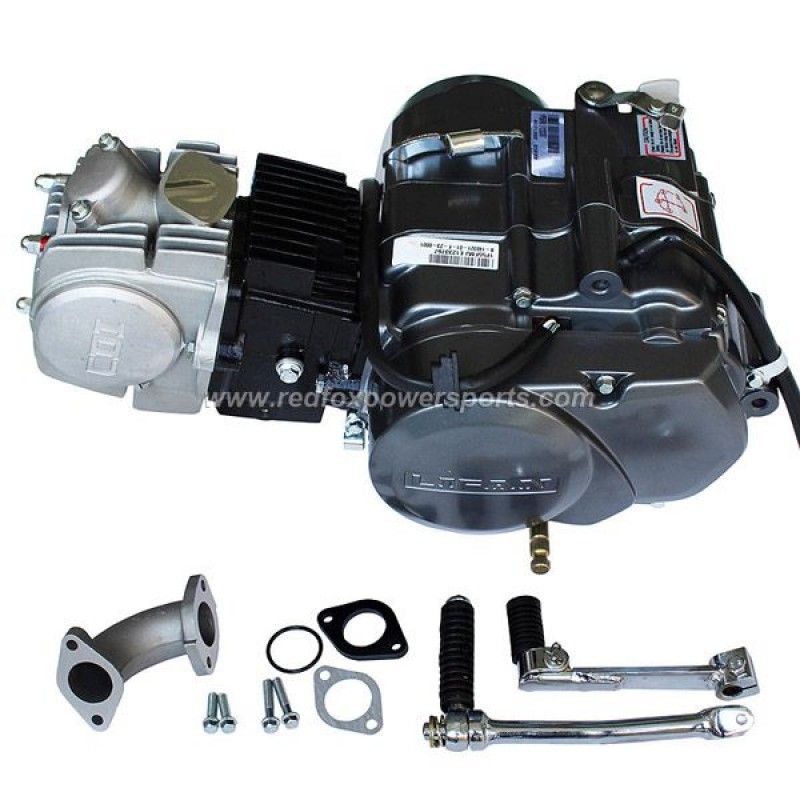

Package Included:
1 x LIFAN 140CC ENGINE
1 x Kick Starter Lever
1 x Gear Shift Lever
1 x Manifold set
Specification
Shipping Rate | 39.9500 |
---|---|
Vehicle Type | Motorcycle, Dirt Bike |
Compatible Brand | Boom, Coolster, Cougar Cycle, Dongfang, Go Bowen, Roketa, TaoTao |
Compatible Model | db-007 125cc, DB-01Q, DB-03-200(LHJ), DB-03-250(LHJ), DB-05H(LHJ), DB-06(RHM-200ED)(LLC), DB-07-200(LHJ), DB-07-250(LHJ), DB-07K-250, DB-08-200(LHJ), DB-08-250(LHJ), DB-08-250(LHJ), DB-08R-200(LHJ), DB-08R-200(LHJ), DB-08R-250(LHJ), DB-08R-250(LHJ), db-10 500watt, DB-14(RSX-125), DB-14(RSX-125), DB-16S(L4P), DB-16S(L4P), DB-18-110(L6Z), DB-18-70, DB-19(RDS-125X)(LXY), db-21 70cc, DB-21B(L4P), db-25 70cc, DB-25(RFX-125), DB-27-200(L6Z), DB-27A(RDS-200X)(LXY), DB-27D-200(L6Z), DB-28(L6U), DB-30(RDX-110), DB-30A(RDX-125), db-34 110cc, DB-34(RAV-125X)(L4G), db-35 125cc, db-36 250cc, DB-36(RDZ-200)(L6U), DB-36A(RDZ-250)(L6U), DB-37(RDB-70)(70cc)(L4P), DB-40, DB-40A, DB-41-250, DB-41H-250, DB-42-200, DB-48-125, db-x15 125cc, db-x16 125cc, db-x18 125cc, db-x4 rfz 110cc, db-x6 125cc, db10, db14, db17, db27, MC-04K-150, MC-04Y-150, MC-05-127, MC-05-127, MC-06-150, MC-07-50(BAHAMA-50), MC-07K-50, MC-07KL-50, MC-07S-150, MC-08K-50, MC-08KC-50, MC-08Y-50, MC-08YC-50, MC-09(RSL-200), MC-100(LJ5), MC-100(LJ5), MC-106-150, MC-106-50, MC-109L-50, MC-10K-50, MC-113, MC-114, MC-119-150, MC-119K-150, MC-121-150, MC-123-150, MC-13-150, MC-13-250, MC-130-150, MC-130-50, MC-131-50, MC-131K-50, MC-132K-150, MC-139-150, MC-13L-150, MC-140-150, MC-140-50, MC-141-250, MC-143-50, MC-144-50, MC-145-50, MC-146-50, MC-148-50, MC-15-50, MC-155-50, MC-156-50, MC-157-50, MC-158-50, MC-159-50, MC-160-50, MC-162-50, MC-162C-50, MC-163-50, MC-16C-150, MC-16C-50, MC-16K-150, MC-16K-50, MC-17K-150, MC-17K-50, MC-20Y-150, MC-22Y-150, MC-22Y-150 OLD, MC-22Y-50, MC-22Y-50 OLD, MC-23K-150, MC-23Y-150, MC-25-250, MC-25-250, MC-26-50, MC-28-50, MC-30-150, MC-31-150, MC-31-50, MC-31A-150, MC-34-125(L3J), MC-36-150, MC-37-125(L3J), MC-38-125(L3J), MC-46J-150, MC-46Y-150, MC-48-150, MC-49-150, MC-50-150, MC-51, MC-51, MC-55-150, MC-56, MC-57-50, MC-58-150, MC-59-150, MC-62A-260, MC-63-150, MC-65-150, MC-65Y-150, MC-70-150(LJ4), MC-71-150(LJ4), MC-72-150(LJ4)(L8Y), MC-74-150(LYD)(LJL), MC-74Y-150(LJ4), MC-75K-150, MC-75L-150(LJL), MC-75Y-150(LJ4), MC-79-250, MC-95-250, MC-98-50, MC-T01-10(L8Y), MC-T01-12, MC-T07-10(L8Y), MC-T07-12, MC-T07-12, rocket 150cc |
Part Number | 01010039 |
