Description
This is new race high performance engine, Manual-clutch International shift 1 down 3 up w/Clutch, 4 Stroke 4 Speed Complete Racing Engine for Honda Bikes.
NOTE: This is not a Honda product it is made by Lifan. This engine does not have oil, please be sure to add the oil before using.
Condition: Brand New

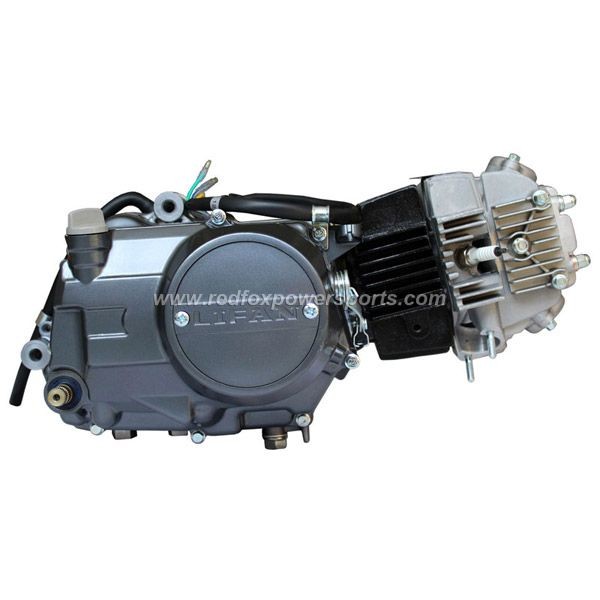

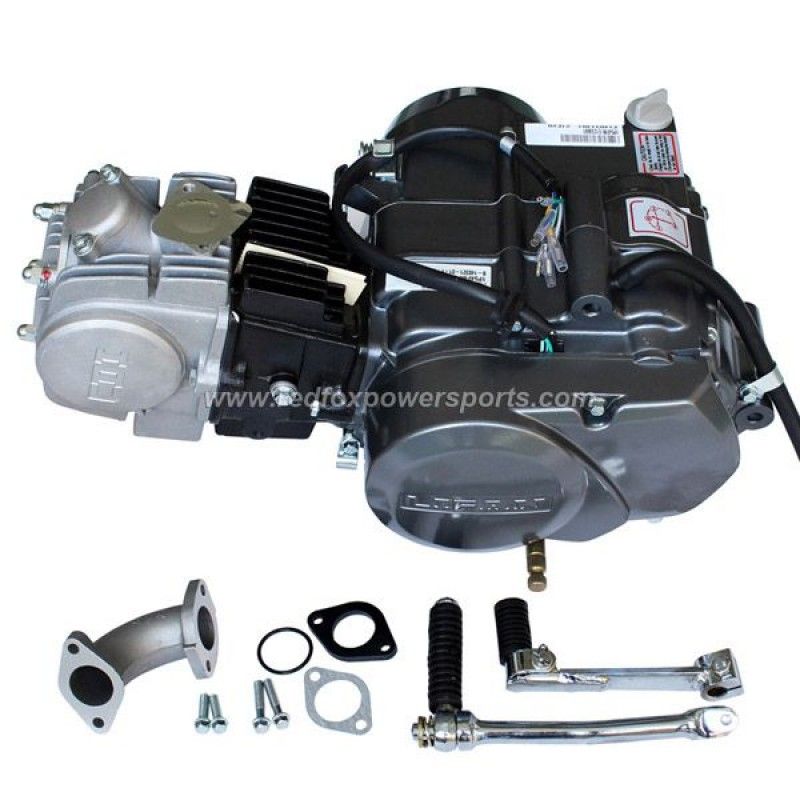

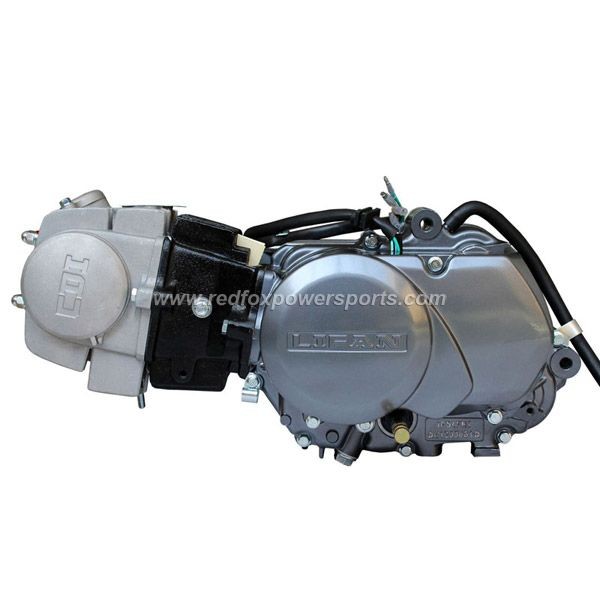

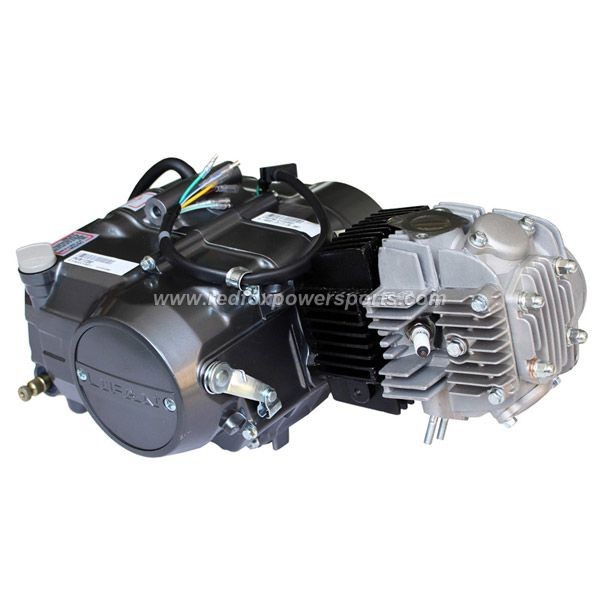

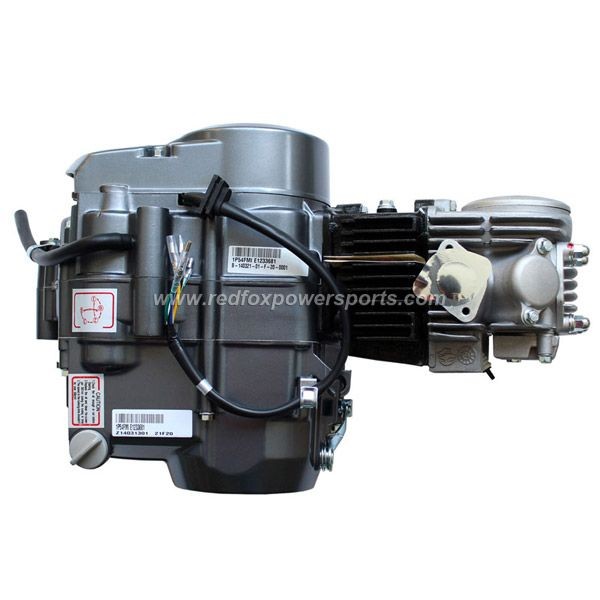

Engine Model: Lifan 1P54FMI-125cc
Type: 4-Stroke single-cylinder OHC air cooled
Bore & Stroke: 54 X 54mm
Compression ratio: 9.47:1
Displacement: 123.7cc
Max. HP: 8.72 HP @ 7,500 RPM
Max. Torque: 8.0N.m @ 5,500 RPM
Carburetor: Walbro, Mikuni, or Sheng Wey
Idle: 1,500 RPM
Starter: Kick Start
Spark plug: A7TC or NGK C6HSA
Plug Gap: .28 or 0.6-0.8mm
Ignition system: CDI (Capacitive Discharge Ignition)
Lubrication: Pressure / Splash
Oil capacity: 0.9L (15w/40-SE)
Measurements: 18 1/4" x 11" x 11"
Weight: 44.1/4 lbs (Engine only) Shipped 52lbs
Clutch: auto or manual clutch-wet
Gears: 4 speed 1 down 3 up (primary reduction: 3.722 manual, 4.059 Auto)
Gear Ratios: 2.833/1.706/1.238/0.958
Magneto: Permanent magnetic
Voltage: 12 Volt
This engine has a three disc crank mounted heavy duty manual clutch. The head has a large domed combustion chamber with large valves. The intake valve is 27mm exhaust valve is 23mm.
This engine must be a neutral to start with a kick starter.
Specification
Shipping Rate | 39.9500 |
---|---|
Vehicle Type | Motorcycle, Scooter, Dirt Bike |
Compatible Brand | Boom, Coolster, Cougar Cycle, Dongfang, Go Bowen, Roketa, TaoTao |
Compatible Model | db-007 125cc, DB-14(RSX-125), DB-14(RSX-125), DB-19(RDS-125X)(LXY), DB-25(RFX-125), DB-30A(RDX-125), db-35 125cc, DB-48-125, db-x15 125cc, db-x16 125cc, db-x18 125cc, db-x6 125cc |
Part Number | 01010038 |
