Description
Thing to be aware of when start your Mini ATV:
1. Make sure to use the proper 2 cycle oil and mix the correct amount with gasoline by watch our video
2. Warm up your ATV and let it idle for about 5-10 mins before riding it every time
HIGH LIGHT:
- 51cc POWERFUL 2 STORKE ENGINE
- BIG SIZE 14.5 INCH REAL OFF ROAD TIRE
- KILL SWITCH WITH HAND STRIP
- PLASTIC MOLDING INJECTION COLOR BODY
- FRONT AND REAR FUNCTIONAL LUGGAGE CARRIER
- SPEED LIMIT ADJUSTMENT FOR TRAINING PURPOSE
- FRONT AND REAR DISC BRAKE
- FRONT AND REAR ADJUSTABLE COILOVER SUSPENSION
- Powerful 2 Stroke 51cc Engine

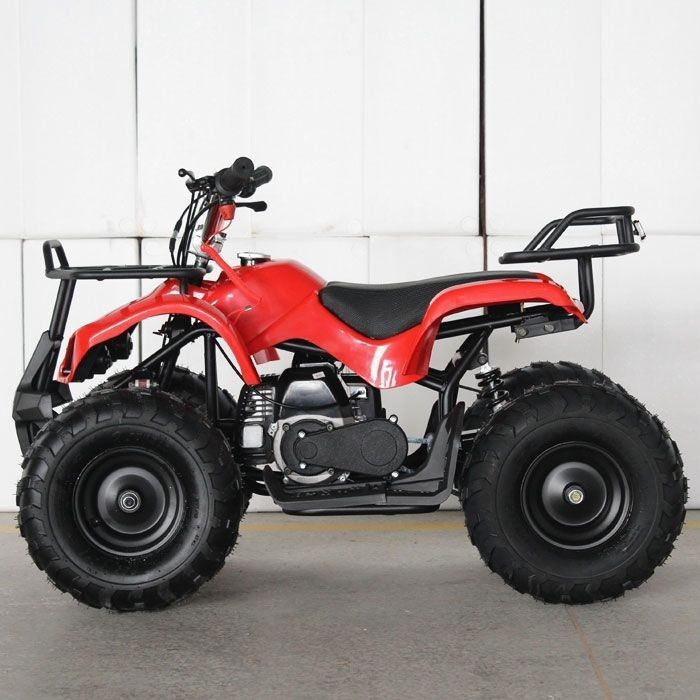

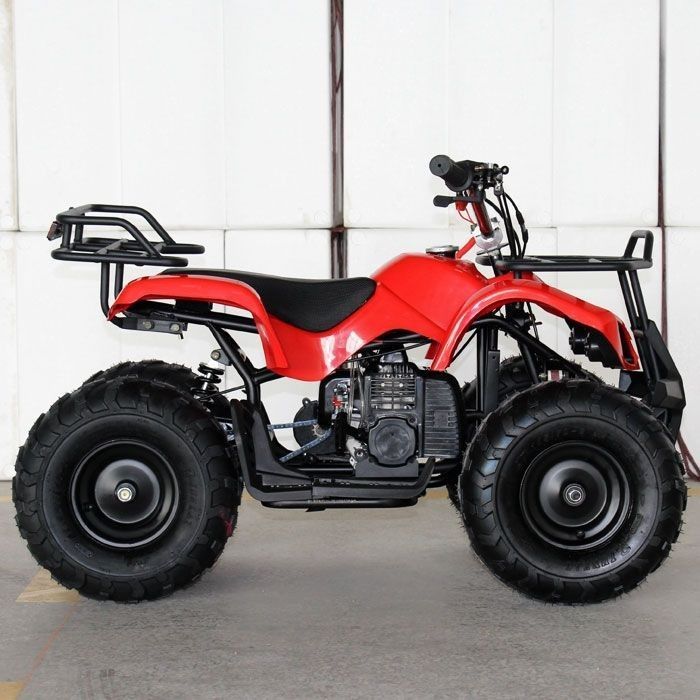

- 51cc 2stroke engine side view
- Big size Real off road Tire

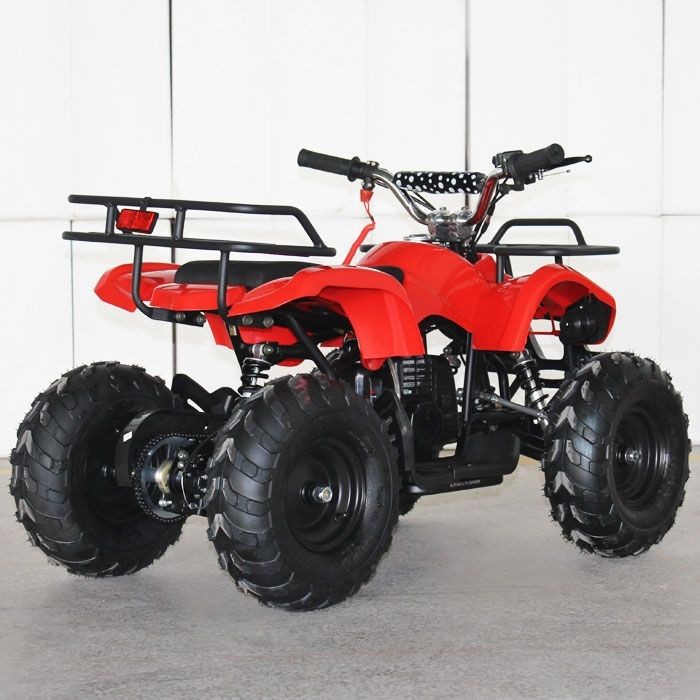

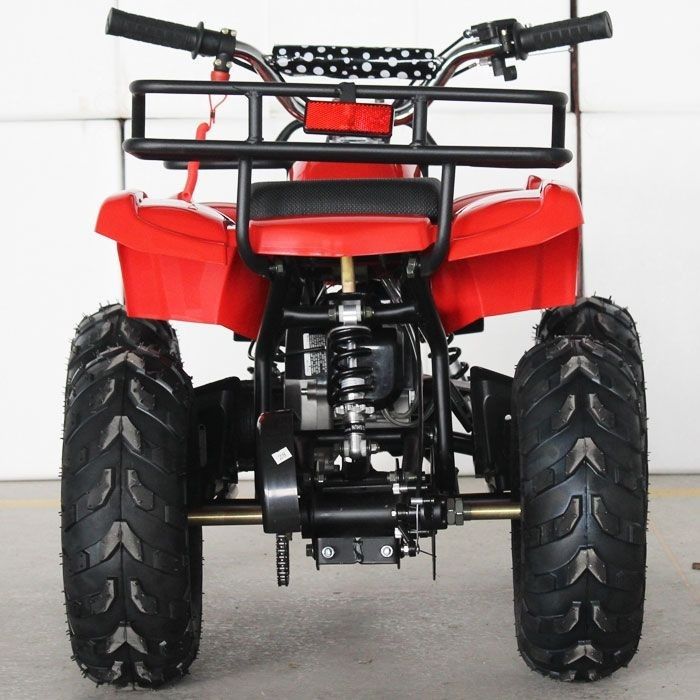

- Rear Disc Brake

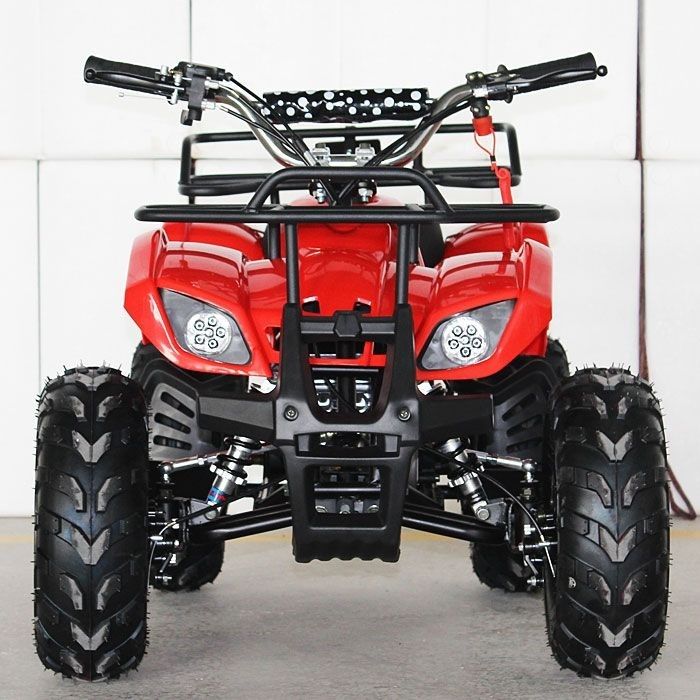

- Front Suspension
- Front Disc Brake
Specification
Vendor | DF-Moto |
---|---|
Shipping Rate | 239.9500 |
Assembly | 70% Assembled (Installation require on varies bolt-on items) |
Engine | Air cooled,Single cylinder,2 Stroke |
Engine Type (ml) | 51 |
Starter | Pull Start |
Gear | AUTO |
Transmission | Chain Drive |
Driving wheel | Rear Wheel Drive |
Max Power | 5.3hp@7500 |
How Fast | Est 21 |
Terrain Suggestion | Paveroad/Semi Grass (base on average terrain condition) |
Cooling System | Air Cooled |
Controls | Kill Switch with Strap |
Kill switch | Yes |
Speed limiter | Yes |
Fuel Type | Gas |
Fuel Capacity (Gal) | 0.85 |
Frame | High Strength Steel |
Ground Clearance (inch) | 3.15 |
Wheelbase (inch) | 27.55 |
Brakes Front | Disc |
Brakes Rear | Disc |
Tires Front | 14.5 |
Tires Rear | 14.5 |
Front Suspension | Single A-arm with Coil Over Shock |
Rear Suspension | Coil Over Shock |
Wheel Size | 6inch |
Weight Capacity (lbs) | 185 |
N.W. (lbs) | 82.67 |
G.W. (lbs) | 103.61 |
Overall Length (inch) | 42.52 |
Overall Width (inch) | 25.59 |
Overall Height (inch) | 26.38 |
Seat Height: (inch) | 19.29 |
Tools Kit | Yes |
CARB Approved | No |
MCO(Title) | No |
Menu and Diagram | DF51AVA-2019 Parts Menu DF51AVA Assembly Guide |
Low Price Guarantee | Yes |
Video
Assemble
Gallery
Vehicle Size
ATV FAQ
Click Here >>FAQ
1. How long have Red Fox Powersports been in business?
A: We have been in the Power Sports industry since 2004 , We do have our own exclusive factory working with us. This will allow us to present exclusive NEW products every year.
2. Where is Red Fox Powersports located?
A: We are located in Southern California with full service capability. Address can be found on the website under office hour and location at the bottom of the page.
3. Can I place my order online by myself?
A: Yes, Red Fox Powersports has the most updated technology on website design, 100% secure shopping cart, self-checkout, user friendly search engine, Detail and accurate specification, exclusive photos and videos of the product. Our goal is to make sure our customer’s money is well spend.
4. Can I place my order over the phone?
A: Yes, contact us at and our well trained staff is ready to help you to pick the best one that is suitable for you. Although some time the phone calls could be busy and you may have to wait on the line, you can always reach us by using the live chat or send us a email (usually live chat is the faster route). To place phone order, please call 877-266-2148
5. How can I make sure the one that I want is in stock before I place my order?
A: You can contact us either by phone, live chat or email to confirm the availability before you place the order.
6. Why is there a 2nd color choice?
A: Due to large demand and limited quantity, a 2nd choice color will help your order to get process smooth incase the 1st choice color is just happen to be out at that moment. But if you absolute need your 1st choice color, just put the 2nd choice color as the same as your 1st choice color.
7. What is 80% and 85% package?
A: This means the package is a factory package which require assembly and fine tune (vary by models). If you are not a mechanic yourself, we strongly suggest you to take our PRO Fully Assembled with Ride Test Package.
8. How fast will I get my order if I pick the rush process?
A: If you select rush process we will ship your order out within 24-36 hours.
9. When can I expect my shipment?
A: This will depending on many factor such as the product, package that is choose, weather , destination and freight carrier schedule and your location, but under normal circumstance it should take anywhere around 5-10 business days.
10. I just placed my order, what should I expect from there now?
A: After you order has been placed, our customer service team will start process your order, they will first make sure your order complies with all security standard and then submit order to the shipping department for freight schedule. At the same time, warehouse will prepare your order for shipping too. The above procedure should be complete within 24-72hrs after you have placed the order. Once the freight carrier picked up your order then you can start track the package by using the tracking number provided by us to you via email.
